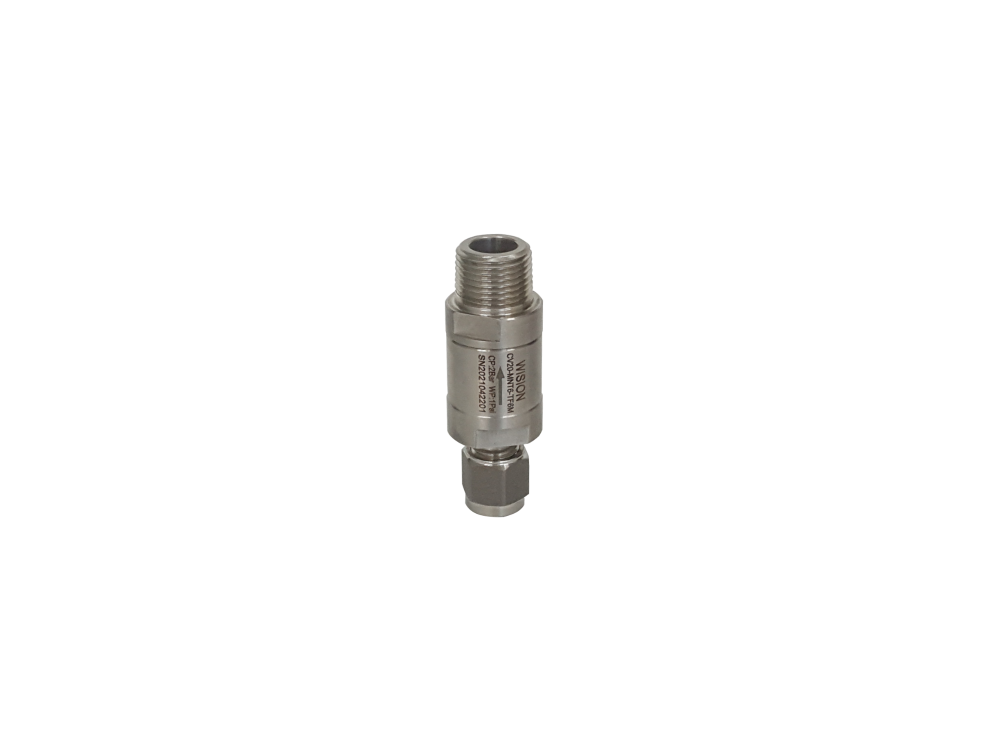

CV20/ACV單向閥結構緊湊，使用簡單。可以用于多種氣體和液體。開啟壓力1/3PSI、1PSI、3PSI、5PSI四種可選。最大工作壓力200BAR和400BAR，工作溫度-40℃至120℃。CV10為金屬高壓軟管入口側專用單向閥，CV20為管道用單向閥，螺紋有NPT、PT、G。ACV單向閥是鋁合金材料，使用壓力3MPA以下。
沃原閥門CV20/ACV單向閥結構緊湊，使用簡單。可以用于多種氣體和液體。
| 基本型號 | 孔徑 | Cv | 進氣接口 | 出氣接口 | A(mm) | C(mm) | D(mm) |
| CV0-F4-M4 | 4.8 | 0.47 | 1/4"FNPT | 1/4"MNPT | 55 | 19 | |
| CV20-M2 | 4.8 | 0.16 | 1/8"MNPT | 1/8"MNPT | 45 | 16 | |
| CV20-TF3M | 3mm卡套 | 3mm卡套 | 56 | 16 | 12 | ||
| CV20-TF3 | 1/8"卡套 | 1/8"卡套 | 56 | 16 | 12 | ||
| CV20-FNT2 | 4.8 | 0.47 | 1/8"FNPT | 1/8"FNPT | 48 | 16 | |
| CV20-MNT4 | 1/4"MNPT | 1/4"MNPT | 54 | 16 | |||
| CV20-TF6M | 6mm卡套 | 6mm卡套 | 60 | 16 | 14 | ||
| CV20-TF4 | 1/4"卡套 | 1/4"卡套 | 60 | 16 | 14 | ||
| CV20-FNT4 | 7.1 | 1.50 | 1/4"FNPT | 1/4"FNPT | 54 | 16 | |
| CV20-F4-M4 | 1/4"FNPT | 1/4"MNPT | 54 | 16 | |||
| CV20-M4-F4 | 1/4"MNPT | 1/4"FNPT | 54 | 16 | |||
| CV20-MNT6 | 3/8"MNPT | 3/8"MNPT | 72 | 22 | |||
| CV20-TF8M | 8mm卡套 | 8mm卡套 | 82 | 22 | 17.5 | ||
| CV20-TF6 | 3/8"卡套 | 3/8"卡套 | 82 | 22 | 17.5 | ||
| CV20-FNT6 | 13.5 | 2.60 | 3/8"FNPT | 3/8"FNPT | 76 | 22 | |
| CV20-MNT8 | 1/2"MNPT | 1/2"MNPT | 80 | 22 | |||
| CV20-TF1OM | 10mm卡套 | 10mm卡套 | 87 | 22 | 22 | ||
| CV20-TF12M | 12mm卡套 | 12mm卡套 | 87 | 22 | 22 | ||
| CV20-TF8 | 1/2"卡套 | 1/2"卡套 | 87 | 22 | 22 | ||
| CV20-FNT8 | 13.5 | 4.40 | 1/2"FNPT | 1/2"FNPT | 91 | 30 | |
| CV20-TF12 | 18.0 | 5.20 | 3/4"卡套 | 3/4"卡套 | 110 | 32 | 29 |
| CV20-FNT12 | 3/4"FNPT | 3/4"FNPT | 105 | 32 | |||
| CV20-FNT16 | 18.0 | 8.0 | 1"FNPT | 1"FNPT | 124 | 42 | |
| CV20-FNT20 | 26 | 12 | 1-1/4"FNPT/RC | 1-1/4"FNPT/RC可選 | 92 | ||
| CV20-FNT24 | 30 | 16 | 1-1/2"FNPT/RC | 1-1/2"FNPT/RC可選 | 92 | ||
| CV20-FNT32 | 40 | 20 | 2"FNPT/RC | 2"FNPT/RC可選 | 92 |
備注：1、開啟壓力選擇:在基本型號后加“開啟壓力值”的編號，如CV20-F6-7, 7PSI開啟壓力。
2、回座壓力為開啟壓力之80%， 如開啟壓力為7PSIG,回座壓力為5. 6PSIG。
